оƬ×é

Intel? Elkhart Lake SoC

BIOS

AMI UEFI BIOS

ÄÚ´æ

1xDDR4 3200MHz SO-DIMM, up to 32GB

²Ù×÷ϵͳ

Windows10, Linux

I/O ½Ó¿Ú

USB

2xUSB3.0, 1xUSB2.0, °åÄÚÔ¤Áô2PIN²åÕë

COM

1xRS485, 1xRS232 (6PIN·ï»Ë¶Ë×Ó,´ø¸ôÀë)

LED

1x Power LED, 1x RUN LED, 1x ERR LED

À©Õ¹

Mini-PCIe

1x Mini-PCIe(¼æÈÝmSATA)

ÏÔʾ

Interface

1xHDMI,HDMI ×î´óÇø·ÖÂÊ 4096*2160@24Hz

1xDP, DP×î´óÇø·ÖÂÊ4096 x 2160@60Hz

´æ´¢

Storage Device

1x MSATA

ÒÔÌ«Íø

LAN

2x LAN( Intel I210AT), 1x ECAT(Intel I210AT)

Interface

3x RJ45

µçÔ´

Power Input

DC IN 24V£¨-20%-+20%£©

ÄÚÖó¬µÈµçÈÝ
£¬1s¶Ïµç¼á³Ö

Power Interface

2PIN·ï»Ë¶Ë×Ó

ÆäËü

Others

1x µçÔ´¼ü

ÎïÀí²ÎÊý

Dimensions

£¨WxHxD)

45x128x120mm

Weight

0.7 KG

Mounting

Wall-mounting, Din rail mounting

ÊÂÇéÇéÐÎ

Operating Temp.

0~60¡æ

Storage Temp.

-25~70¡æ

Humidity

95%@40¡æ ÎÞÄý¾Û

Shock

With SSD: 15G, IEC 60068-2-27, half sine, 11ms duration

Vibration

With SSD:2Grms, IEC 60068-2-64, random
£¬5~500Hz
£¬1 hr/axis

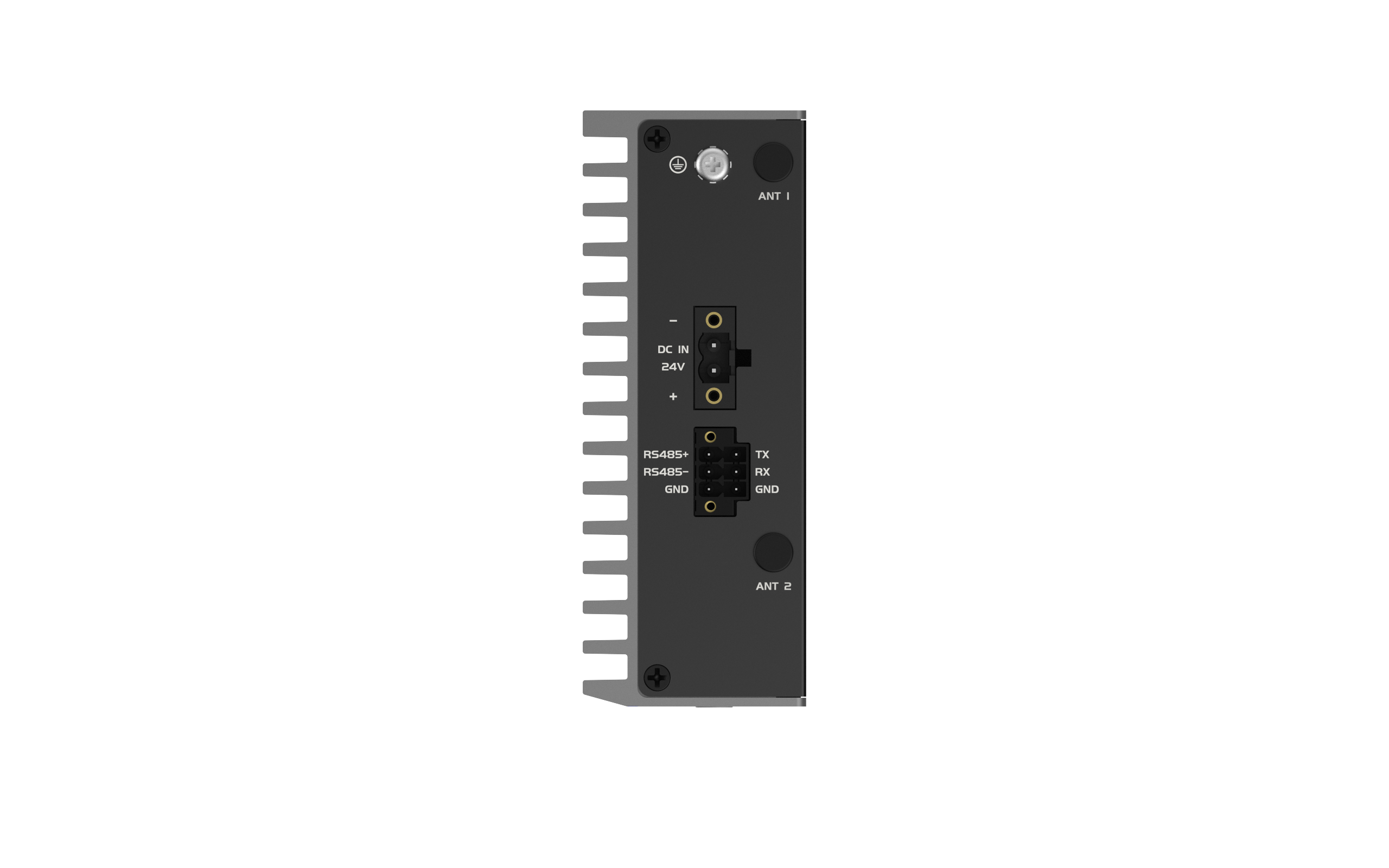

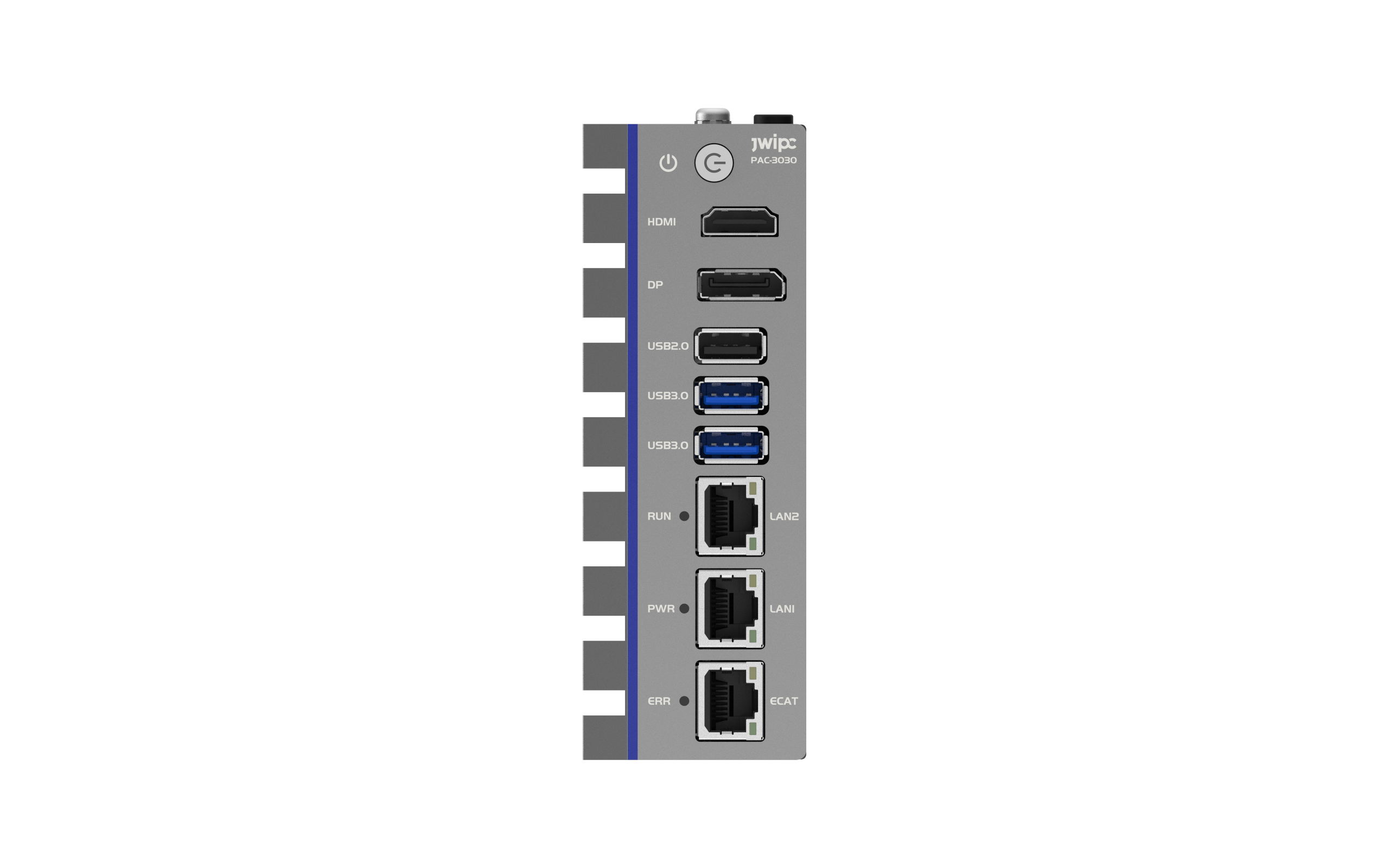

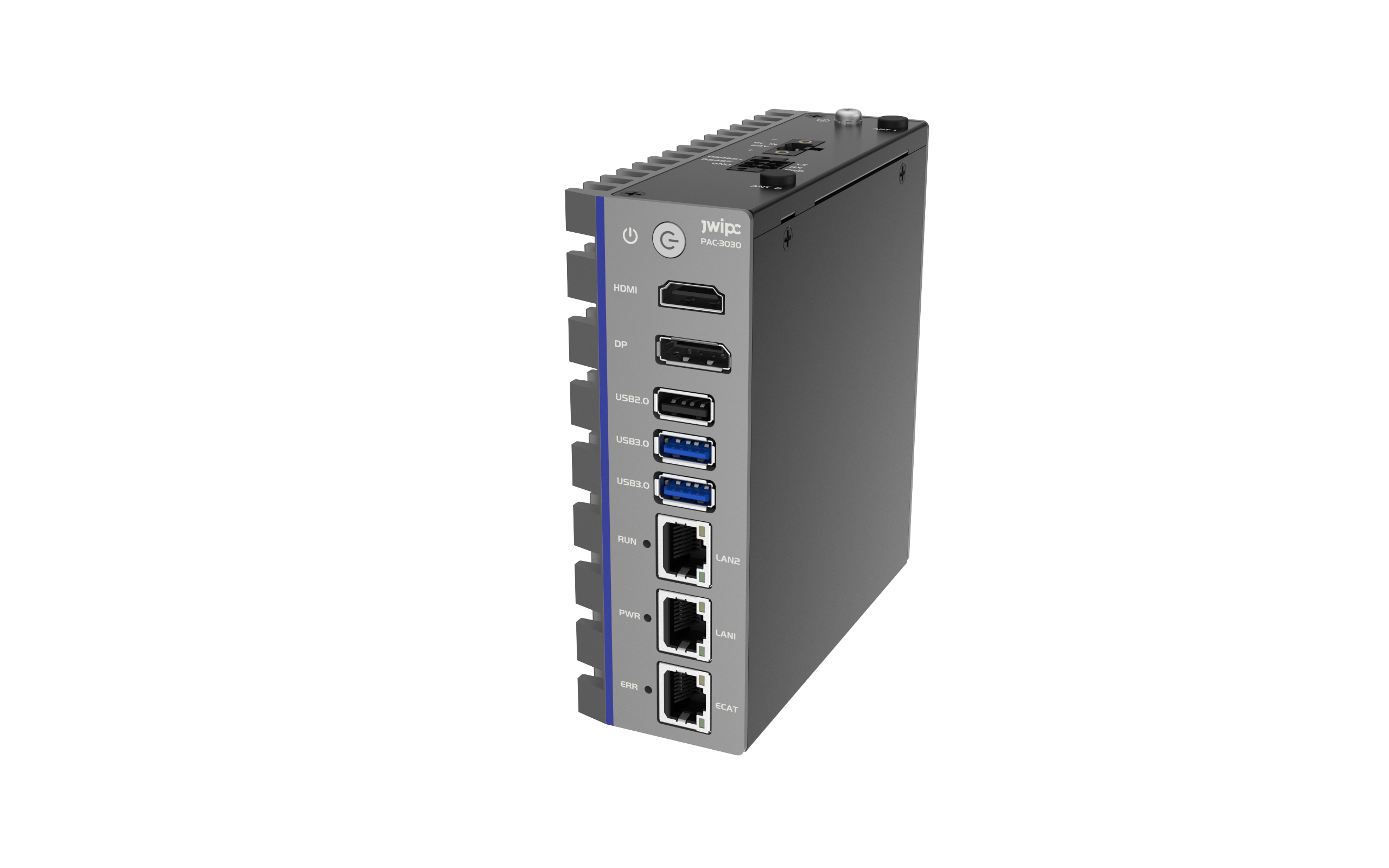

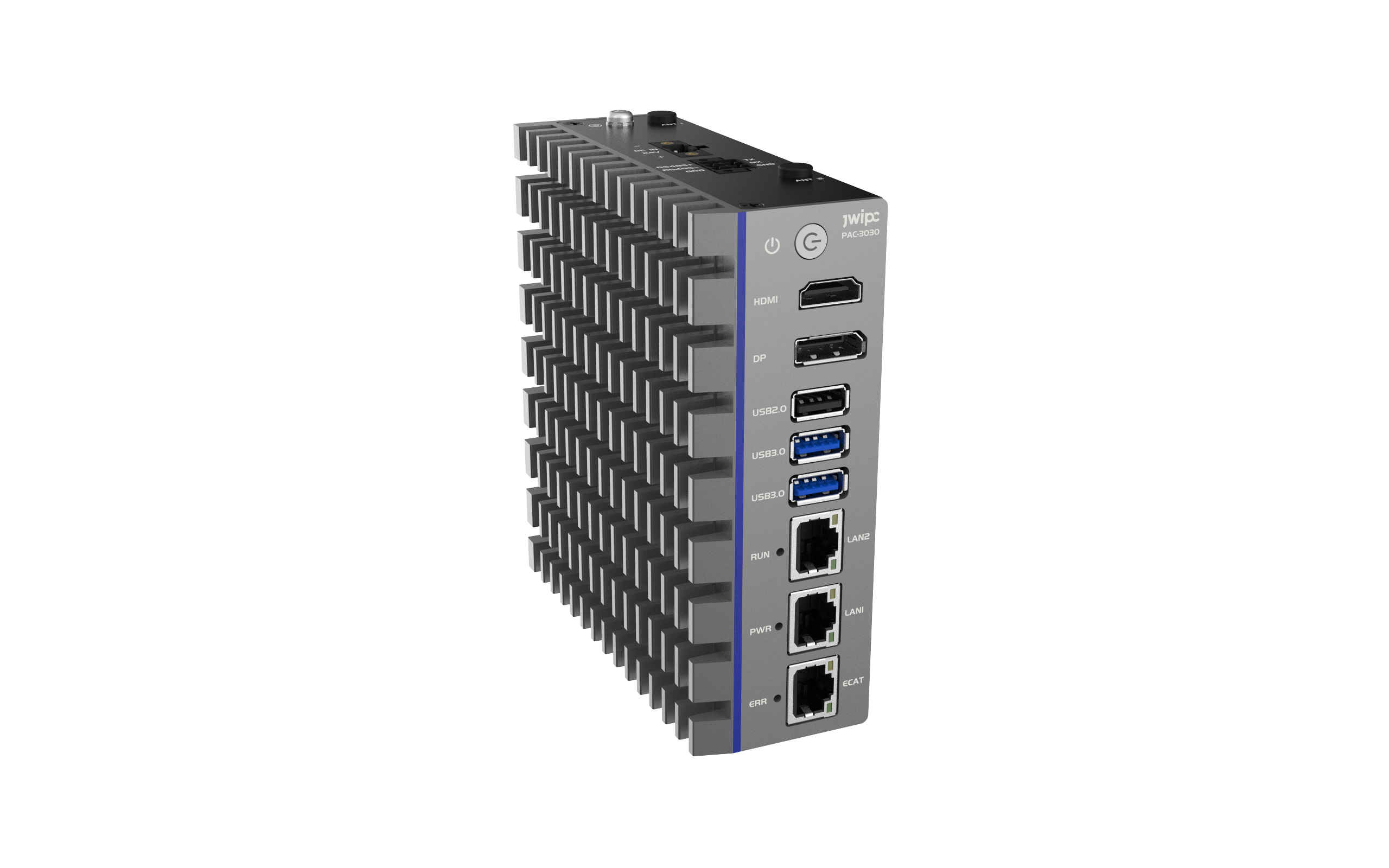

PAC-3030

J6412

1

1

2

1

2

1

2

1/1»ò2/0

PAC-3030

1x¿ØÖÆÆ÷Ö÷»ú

¶Ë×Ó°ü

1x¶Ë×Ó°ü
