NPU

N/A

Graphic card

Mali-450 MP2

Multi displays

N/A

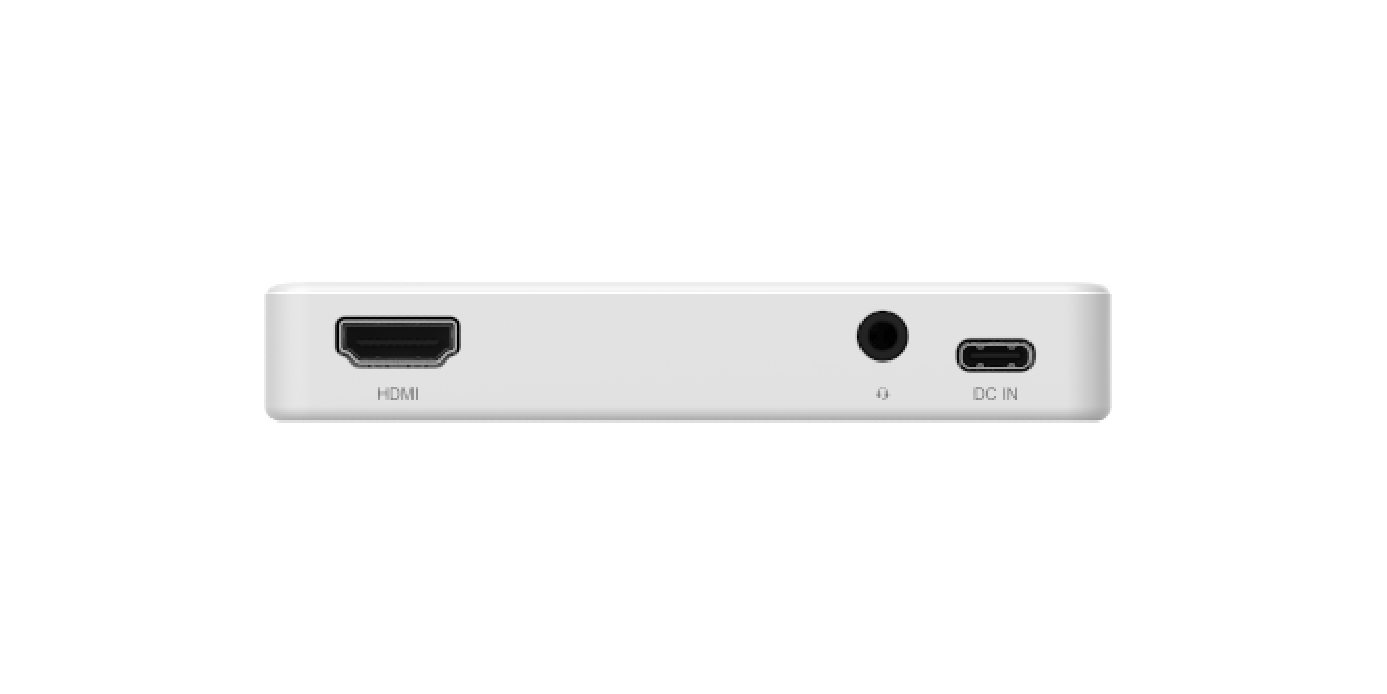

Interface

1 x HDMI-Out 4K @60Hz

Lan Interface

100Mbps

Lan Connector

1 x RJ45 Ports

Wireless Type

SDIO

Wireless Interface

2T2R, 2.4G/5G WiFi5 /BT4.2

4G/5G

N/A

Serial Port

N/A

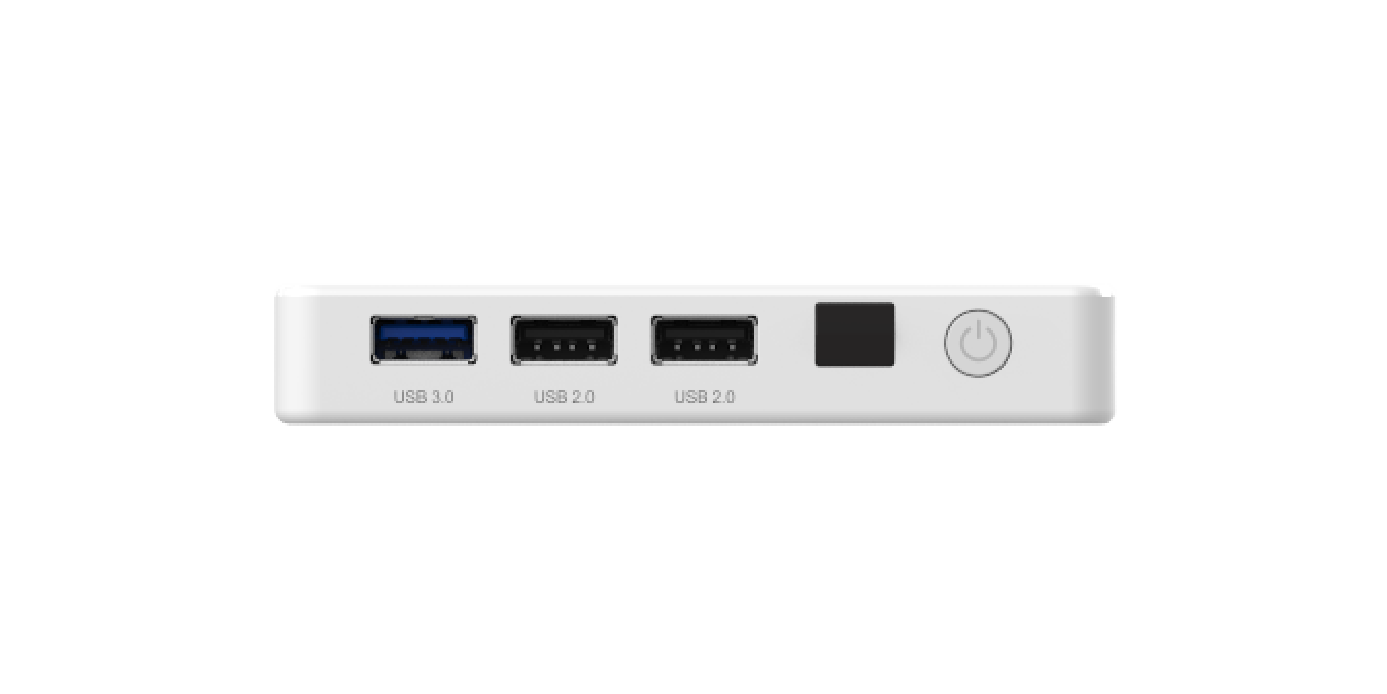

USB

1 x USB3.0,  2 x USB2.0

Button

1 x Power Button

SIM CARD

N/A

AUDIO

1 x 3.5mm Audio Jack£¨Mic-In + Line Out£©

POWER

1 x Type-C (Charging Port)

Memory

2GB LPDDR4/4X, Optional 4GB

Storage

16GB EMMC, Optional 32GB

OS

Android 9 / Linux

MCU

Optional (Wake-on-LAN /Remote Shutdown /Watchdog /Auto Power On)

RTC

Power on at specific time everyday

Other

Optional IR

Power Input

5v  DC-In (Type-C)

Dimension

108mm(L) x 67mm(W) x 18mm(H)

Operating Temp.

0~45¡æ

Operating Humidity

10%~90% non-condensing

Storage Temp

-20~70¡æ

Operating Humidity

5%~90% non-condensing
